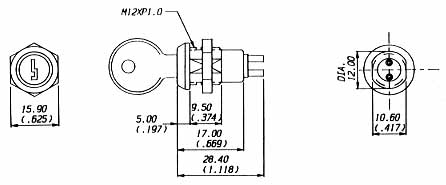

JD 3401

ON-OFF MINI KEY SWITCH

ELECTRICAL SPECIFICATIONS
CONTACT RATING:@ 2A 125VAC,1A 250VAC
CONTACT RESISTANCE:@ BELOW 10 million OHMS
INSULATION RESISTANCE: 500 mega OHMS
DIELECTRIC STRENGTH: 1000V RMS Min. sea level
ELECTRICAL LIFE: 6000 make-and-break
cycles AT FULL LOAD
@
@
@MATERIALS@
LOCK HOUSING: ZINC ALLOY DIE-CASTED, NICKEL PLATED.
CYLINDER: 4 DISC TUMBLERS CONSTRUCTED.
LOCK HEAD: COVERED BY STAINLESS STEEL PLATE.
KEYS: SINGLE BITTED, BRASS OR STEEL, NICKEL PLATED.
CONTACTS: GOLD PLATED
MOUNTING NUT:@@ STEEL, NICKEL PLATED.@

@
