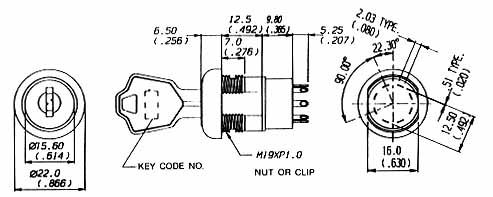

JD 7509

@KEY SWITCH

ELECTRICAL SPECIFICATIONS
CONTACT RATING:@ 4A 125VAC/28VDC, 2A 250VAC
CONTACT RESISTANCE:@ BELOW 10 million OHMS
INSULATION RESISTANCE: 1 Billion OHMS Min.
DIELECTRIC STRENGTH: 1000V RMS Min. sea level
ELECTRICAL LIFE: 6000 make-and-break cycles at full load
ABOVE DATA HAD BEEN PASSED U.L. INSPECTION.
@
@
@MATERIALS@
LOCK HOUSING: ZINC ALLOY DIE-CASTED NICKEL PLATED.
CYLINDER: 4 DISC TUMBLERS CONSTRUCTED, ZINC ALLOY DIE-CASTED NICKEL PLATED.
KEYS: BRASS, ORIGINAL COLOR OR NICKEL PLATED.@
CONTACTS: SUPER HARD COPPER ALLOY, SILVER PLATED.
MOUNTING NUT:@@ ZINC ALLOY DIE CASTED, NICKEL PLATED. @

@
