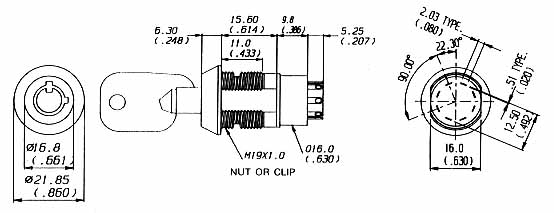

JD 7518

ˇ@KEY SWITCH

ELECTRICAL SPECIFICATIONS
CONTACT RATING:ˇ@ 4A 125VAC/28VDC, 2A 250VAC
CONTACT RESISTANCE:ˇ@ BELOW 10 million OHMS
INSULATION RESISTANCE: 1 Billion OHMS Min.
DIELECTRIC STRENGTH: 1000V RMS Min. sea level
ELECTRICAL LIFE: 6000 make-and-break cycles at full load
ABOVE DATA HAD BEEN PASSED U.L. INSPECTION.
ˇ@
ˇ@
ˇ@MATERIALSˇ@
LOCK HOUSING: ZINC ALLOY DIE-CASTED CHRPME PLATED.
CYLINDER: 7 PIN CONSTRUCTED, ZINC ALLOY DIE-CASTED CHROME PLATED.
KEYS: TUBULAR KEYˇ@ NICKEL PLATED.ˇ@
CONTACTS: SUPER HARD COPPER ALLOY, SILVER PLATED.
MOUNTING NUT:ˇ@ˇ@ ZINC ALLOY DIE CASTED, NICKEL PLATED. ˇ@
MOUNTING CLIP: STEEL NICKEL PLATED.

ˇ@
