JD 8409

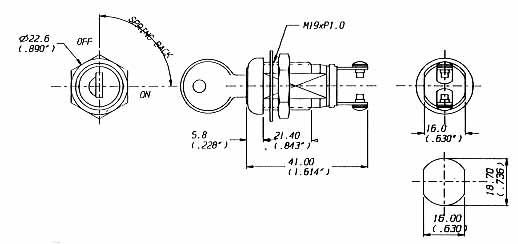

8409 MAINTAINING ON-OFF KEY SWITCH
8409-S MOMENTARY ON-OFF KEY SWITCH
@
Description:
Zinc alloy die cast housing.@
Two single-bitted brass keys.
Dust-proof shutter.@
5-disc tumbler cylinder.
Key can be withdrawn in one or both positions.
Two terminals.
Momentary contact (spring return).
Contact rating:4A 125V AC 2Amp 250V AC.@
@
@

@
