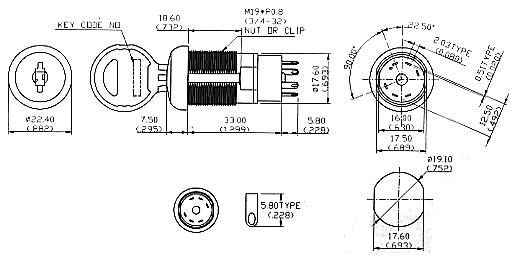

JD 9150

　HIGH SEEURITY KEY SWITCH.

CUL, TAIWAN GOVERMENT PATENTED.

ELECTRICAL SPECIFICATIONS
CONTACT RATING:　 4A 125VAC/28VDC, 2A 250VAC
CONTACT RESISTANCE:　 BELOW 10 million OHMS
INSULATION RESISTANCE: 1 Billion OHMS Min.
DIELECTRIC STRENGTH: 1000V RMS Min. sea level
ELECTRICAL LIFE: 10000 make-and-break cycles
　
　
DESCRIPTIONS　
* ZINC ALLOY DIE-CASTED  HOUSING & CYLINDER CHROME PLATED
* CYLINDER STRUCTURE
01
 HARDEN STEEL GUIDE
04
 BODY GUIDE
14
 DISC-TUMBLERS.
* 2 BRASS KEY TRIPLE BITTED, NICKEL PLATED
* SUPER-HARD COPPER ALLOY CONTACTS GOLD PLATED
* LOCK CONFIGURATION, PLEASE REFER THE LOCK CONFIGURATION OF JD-7509 SERIES


　
